Awning window operator hardware is essential for smooth opening, secure sash control, and long-term reliability. This guide highlights five dependable products that fit common awning window styles and brands, from Prime-Line’s durable diecast operators to specialized adapters and sash shoes. Each option emphasizes solid construction, compatibility, and corrosion resistance to keep windows functioning well in varied climates. Read on to compare designs, installation notes, and how each unit supports easier maintenance and better window performance.
Summary table of chosen products:
| Product | Brand | Key Feature |
|---|---|---|
| H 3678 Awning Window Operator, Right Hand | Prime-Line | Diecast/steel, gray finish, corrosion resistant |
| H 3670 Awning Window Operator, Right-Hand | Prime-Line | Diecast/steel, gray finish, for Look-Rusco windows |
| 21-1/2″ White Roto Gear Awning Window Operator | C.R. Laurence | Baked enamel finish; two lengths; crank and sash bracket included |
| Andersen Awning Window Operator Shoe (Pair) | Andersen Windows | Pair-sold; compatible with specific Primed Wood Flexivent/Beauty-Line models |
| Opener Adapter for Skylight / Velux Eyelet Adapter | SyunsXoon | Zinc alloy, set screws; adaptable to awning and skylight hardware |
Prime-Line H 3678 Awning Window Operator
Designed for right-hand use with Tucker awning windows, this operator combines diecast and steel components for strength. Its neutral gray color helps it blend with most hardware schemes, and the baked-on enamel finish provides corrosion resistance in varying climates. This model is specifically compatible with Look-Rusco awning windows, offering a straightforward replacement path for homeowners and technicians managing Look-Rusco hardware.
The H 3678 emphasizes durability and compatibility, making it a practical choice for standard residential applications. When replacing, confirm hinge alignment and mounting hole spacing to ensure a flush fit and smooth operation. Regular inspection can extend life by spotting wear on the crank and pivot points early.
Prime-Line H 3670 Awning Window Operator
This right-hand operator is built with diecast and steel, finished in a neutral gray for seamless integration with existing hardware. Like others in the Prime-Line series, it offers corrosion resistance via a baked-on enamel coating. It is designed for use with awning windows manufactured by Stanley Windows, making it a practical match in homes or facilities with those installations.
Installation notes include verifying mounting hole alignment and ensuring the operator arms align with the sash. The combination of diecast and steel parts provides reliable load-bearing performance, reducing flex over time. If replacing multiple units, stock up on screws and brackets that match the original sizing to avoid misalignment.

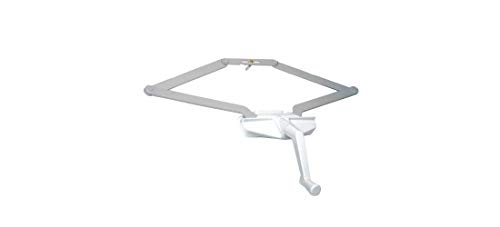

21-1/2″ White Roto Gear Awning Window Operator
This operator features a baked enamel finish and offers two overall length choices for flexibility. A crank handle and sash bracket are included, enabling straightforward installation and operation. The Roto Gear design supports smooth actuation and helps maintain consistent sash movement in medium-to-large awning windows.
When selecting length, measure the sash height and existing hardware reach. The included crank and bracket reduce the need for additional purchases, streamlining replacement projects. Regular checks for gear tooth wear and crank stability will help sustain performance over years of use.
Andersen Awning Window Operator Shoe (Pair)
Sold as a pair, these shoes are designed for Amerock Roto-Lock short and long arm operators. They clip onto the sash rod and slide onto the operator arm end, delivering a secure connection between the sash and operator. This option is suited for Primed Wood Flexivent and Beauty-Line awning windows manufactured between 1959 and 1981, illustrating legacy compatibility in older installations.
For durability, ensure proper sizing so the shoe aligns with the operator arm end. Replacing both shoes at once can stabilize sash movement and reduce uneven wear. This accessory is a practical choice when a full operator replacement is not required, yet the arm-to-sash interface needs renewed stability.
Buying Guide: Key Purchase Considerations And Comparisons
When choosing awning window operator hardware, consider compatibility with window brands and models, wear life, and environmental durability. Here are essential factors to weigh, plus how the selected products stack up.
- Compatibility: Confirm the operator model matches your window’s brand and era. For example, Prime-Line H 3678 and H 3670 target Look-Rusco and Stanley windows respectively, while the Andersen shoe pairs with specific Andersen and older systems.
- Material and Finish: Diecast and steel bodies with baked-on enamel finishes resist corrosion. Neutral gray or white finishes help blend with most frames and hardware palettes.
- Length And Fit: Operators come in various lengths. Measure sash height and existing arm reach to ensure a proper fit, especially for the 21-1/2″ Roto Gear option.
- Components Included: Some models include cranks, brackets, or shoes. Having these parts included reduces the need for extra purchases during replacement projects.
- Installation Complexity: Some items are straightforward to install with basic tools; others may require alignment checks or professional assistance for older or complex window assemblies.
- Durability And Warranties: Look for baked enamel coatings and corrosion-resistant constructions. A longer expected service life translates to lower maintenance costs over time.
- Accessory Options: If an operator is still functional but components wear out, shoes or adapters can renew motion without a full replacement.
- Budget And Availability: Consider whether a direct replacement from the original manufacturer or a compatible aftermarket part best fits your project timeline and budget.
Overall, the best choice balances compatibility with durability. For modern installations, Prime-Line H 3678 or H 3670 offer robust, widely compatible options. For legacy Andersen or specialized frames, the Andersen shoe provides a precise match, while the 21-1/2″ Roto Gear can address length-specific needs. If you’re updating skylight-adjacent hardware, the eyelet adapter delivers a flexible upgrade path. Always verify measurements and consult installation guidelines to avoid mismatches.
